Features

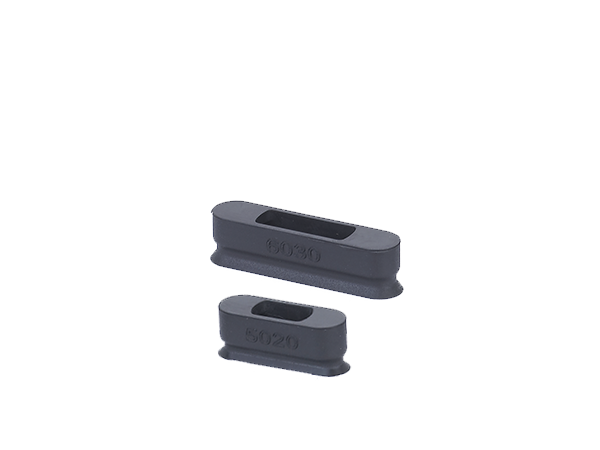

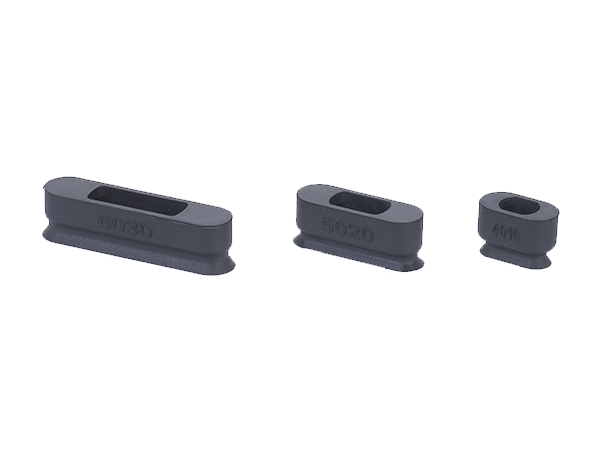

◇ Oval Flat structure, suitable for handling long and thin workpiece.
◇ Suction cup with different materials are suitable for different workpieces.
◇ Various sizes,suitable for workpiece with different sizes.
Applications
◇ Long and thin workpiece
◇ Electronic product
| How to order | ||||
| SAO 8×20 N ① ② ③ | ||||
| ① Series | ② Dimension | ④Material & Hardness | ||
| SAO | 3.5×7 4×10 5×10 6×10 4×20 5×20 | 6×20 8×20 4×30 5×30 6×30 8×30 | N - NBR WS - White silicone CN - Conductive NBR CS - Conductive silicone | |
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm3) | Min. curve radius of workpiece (mm) | Recommended hose dia.(mm) |
| SAO3.5×7 | 0.9 | <0.1 | 6.0 | 4.0 |
| SAO4×10 | 1.6 | <0.1 | 7.0 | 4.0 |
| SAO5×10 | 2.0 | <0.1 | 9.0 | 4.0 |
| SAO6×10 | 2.4 | <0.1 | 13.0 | 4.0 |
| SAO4×20 | 3.2 | <0.1 | 8.0 | 4.0 |
| SAO5×20 | 4.2 | <0.1 | 11.0 | 4.0 |
| SAO6×20 | 5.0 | <0.1 | 14.0 | 4.0 |
| SAO8×20 | 6.5 | <0.1 | 16.0 | 4.0 |
| SAO4×30 | 5.2 | <0.1 | 8.0 | 4.0 |
| SAO5×30 | 6.5 | <0.1 | 10.0 | 4.0 |
| SAO6×30 | 7.8 | <0.1 | 14.0 | 4.0 |
| SAO8×30 | 10.2 | 0.1 | 18.0 | 4.0 |
◇Note: Testing vacuum level -60kPa.Workpiece with smooth and clean surface. The data of pull-out force as above are
figured out without considering safety factor. The data may be different according to different workpiece surfaces.

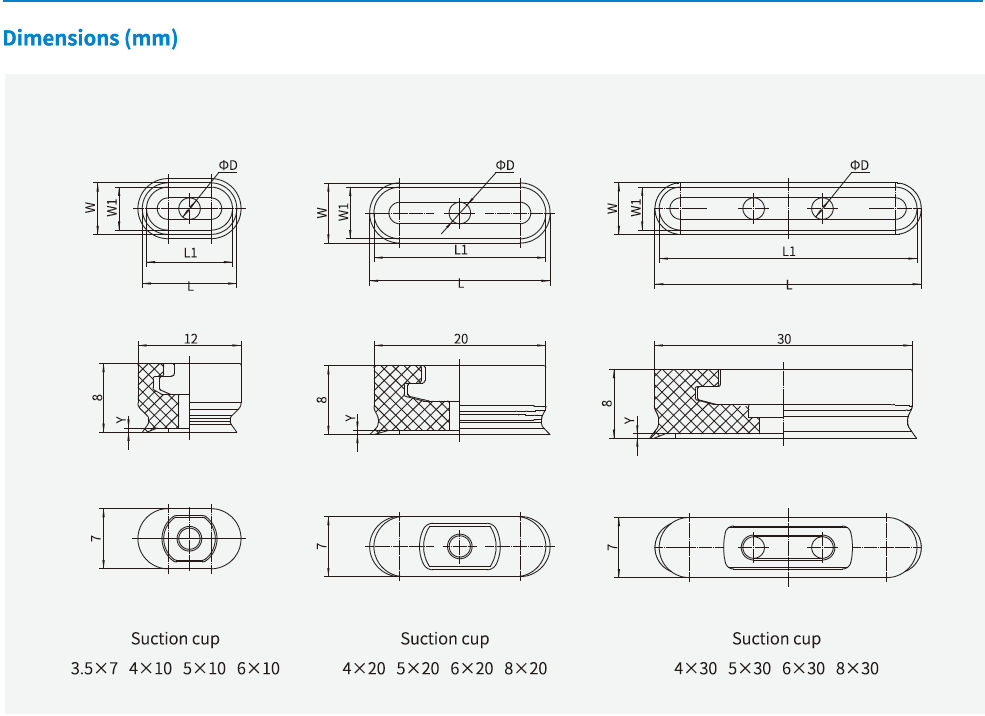

| Model/ Dimension | W | L | W1 | L1 | D | Y |
| SAO3.5×7 | 4.5 | 8.0 | 3.5 | 7.0 | 2-1.5 | 0.5 |
| SAO4×10 | 5.0 | 11.0 | 4.0 | 10.0 | 2-1.5 | 0.5 |
| SAO5×10 | 6.0 | 11.0 | 5.0 | 10.0 | 2.5 | 0.5 |
| SAO6×10 | 7.0 | 11.0 | 6.0 | 10.0 | 2.5 | 0.5 |
| SAO4×20 | 5.0 | 21.0 | 4.0 | 20.0 | 2-1.8 | 0.5 |
| SAO5×20 | 6.0 | 21.0 | 5.0 | 20.0 | 2-2 | 0.5 |
| SAO6×20 | 7.0 | 21.0 | 6.0 | 20.0 | 2.5 | 0.5 |
| SAO8×20 | 9.0 | 21.0 | 8.0 | 20.0 | 3.0 | 0.8 |
| SAO4×30 | 5.0 | 31.0 | 4.0 | 30.0 | 2-1.8 | 0.5 |
| SAO5×30 | 6.0 | 31.0 | 5.0 | 30.0 | 2-2.5 | 0.5 |
| SAO6×30 | 7.0 | 31.0 | 6.0 | 30.0 | 2-2.5 | 0.5 |
| SAO8×30 | 9.0 | 31.0 | 8.0 | 30.0 | 2-2.5 | 0.8 |
