AZH Series
Basic Vacuum Pump

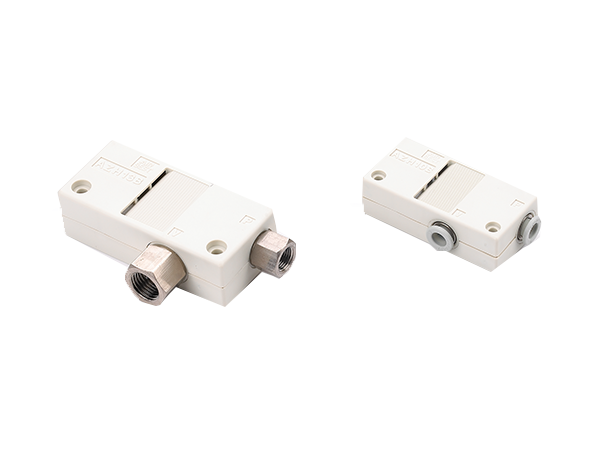

AZH Series Basic Vacuum Pump
AZH Series Basic Vacuum Pump
Features
How to order
Technical parameters
Dimensions (mm)
Download
Back

Features

◇ Equipped with One-touch fitting,easy to install.
◇ Resin made housing,small volume and light weight.
◇ Available in high vacuum level type and large vacuum flow type.



Applications

◇ Suitable for occasions where vacuum is required for each station in fast operation.
◇ Handling of electronic components.
◇ Various specifications to meet different operation requirements.
◇ Used in separation system for plastic and metal plate processing.

How to order
AZH 05  B   H -A
  ①   ②  ③  ④  ⑤









① Series ② Nozzle diameter③  Body type ④ Specification⑤ Connection thread
AZH5 - φ0.5mm
07-φ0.7mm
10-φ1.0mm
13-φ1.3mm
15-φ1.5mm
18-φ1.8mm
20-φ2.0mm
B -  Box type
(internal silencer)
D -  Body ported type
(without silencer)
H -  High vacuum level type
(-88kPa)
L  -  Large vacuum flow type
(-48kPa)
A -  One-touch fitting
T -  Female thread



Selecti
Model/Body typeBHBLDHDL
ATATATAT
AZH05●●●●●●●●
AZH07●●●●●●●●
AZH10●●●●●●●●
AZH13●●●●●●●●
AZH15----●●●●
AZH18----●●●●
AZH20----●●●●


◇Note: "●"- standard, in stock. "—"-unavailable.


Technical parameters











ModelNozzle diameter
(mm)
Air supply
pressure (bar)
Max. vacuum level (-kPa)Max. Vacuum flow  (NL/min)Air consumption
(NL/min)
Recommended hose dia.(mm)
HLHL
Air supply(S)Vacuum(V)Exhaust(E)
AZH05B0.5 4.588485913.5φ6φ6-
AZH07B0.7 4.58848122223.5φ6φ6-
AZH10B1.0 4.58848243446φ6φ6-
AZH13B1.3 4.58848407578φ8φ10-
AZH05D0.5 4.588487.5913.5φ6φ6φ6
AZH07D0.7 4.58848122223.5φ6φ6φ6
AZH10D1.0 4.58848243446φ6φ6φ8
AZH13D1.3 4.58848407578φ8φ10φ10
AZH15D1.5 4.58853608097φ10φ12φ12
AZH18D1.8 4.5885370110150φ12φ12φ12
AZH20D2.0 4.5885385140185φ12φ16φ16

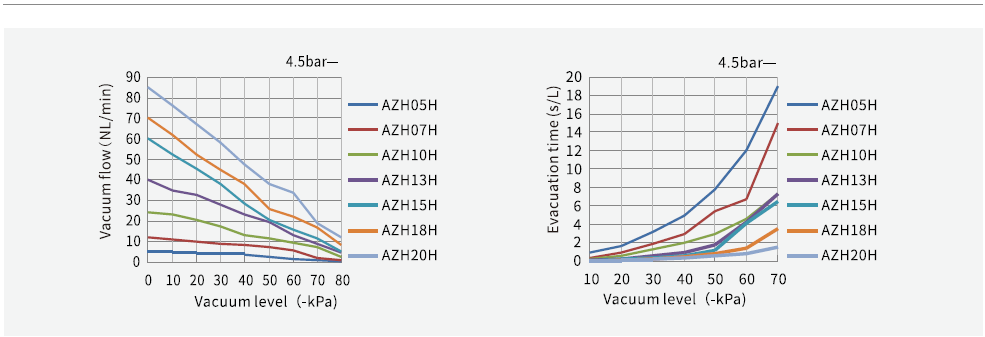

Vacuum flow (NL/min)at different vacuum levels (-kPa)
Model Air supply
pressure (bar)
Air consumption
(NL/min)
01020304050607080Max. vacuum
level (-kPa)
AZH05H4.513.5 5.0 4.5 4.1 3.8 3.3 2.3 1.6 0.9 0.3 88
AZH07H4.523.5 12.0 11.0 10.0 9.0 8.0 7.0 5.5 2.1 0.8
AZH10H4.546.0 24.0 23.0 20.5 17.5 13.0 11.5 9.5 7.0 2.5
AZH13H4.578.0 40.0 35.0 32.5 28.0 23.0 19.5 13.0 9.0 4.5
AZH15H4.597.0 60.0 52.5 45.5 38.0 28.5 20.5 15.5 11.5 5.0
AZH18H4.5150.0 70.0 62.0 52.0 45.0 38.0 26.0 22.0 16.5 8.5
AZH20H4.5185.0 85.0 76.0 67.0 58.0 47.5 38.0 33.5 19.0 12.0



Evacuation time (S/L) to reach different vacuum levels(-kPa)
ModelAir supply
pressure (bar)
Air consumption
(NL/min)
10203040506070Max. vacuum
level (-kPa)
AZH05H4.513.50.891.73.257.8121988
AZH07H4.523.50.3711.935.46.715
AZH10H4.5460.250.61.2522.94.67.3
AZH13H4.5780.10.270.5311.754.27.3
AZH15H4.5970.040.210.350.631.234.16.5
AZH18H4.51500.020.150.290.460.781.383.51
AZH20H4.51850.020.120.210.340.550.851.58

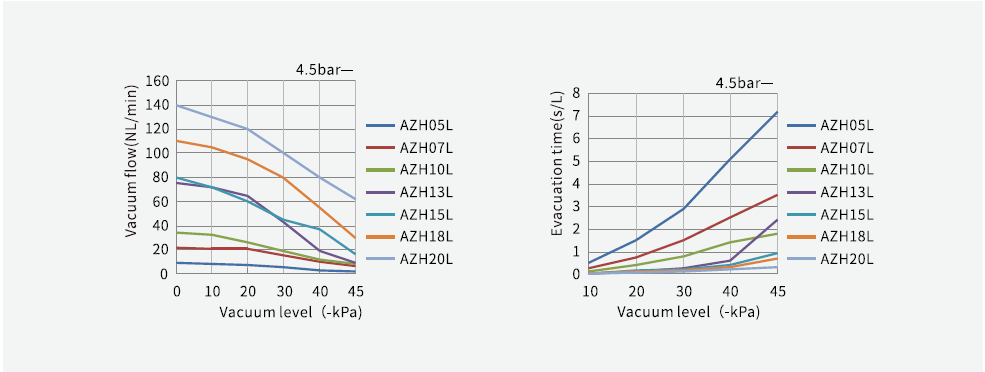

Vacuum flow (NL/min)at different vacuum levels (-kPa)
ModelAir supply
pressure (bar)
Air consumption
(NL/min)
01020304045Max. vacuum
level (-kPa)
AZH05L4.513.5987631.948
AZH07L4.523.5222120.515.510.56.848
AZH10L4.5463432261912848
AZH13L4.5787572654319948
AZH15L4.5978072604536.51653
AZH18L4.51501101059580553053
AZH20L4.5185140130120100806253


Evacuation time (S/L) to reach different vacuum levels(-kPa)
ModelAir supply
pressure (bar)
Air consumption
(NL/min)
1020304045Max. vacuum
level (-kPa)
AZH05L4.513.50.491.52.95.17.248
AZH07L4.523.50.280.751.52.53.548
AZH10L4.5460.140.40.811.41.848
AZH13L4.5780.040.120.240.622.448
AZH15L4.5970.030.150.230.40.9253
AZH18L4.51500.020.10.180.320.6753
AZH20L4.51850.010.080.140.20.353

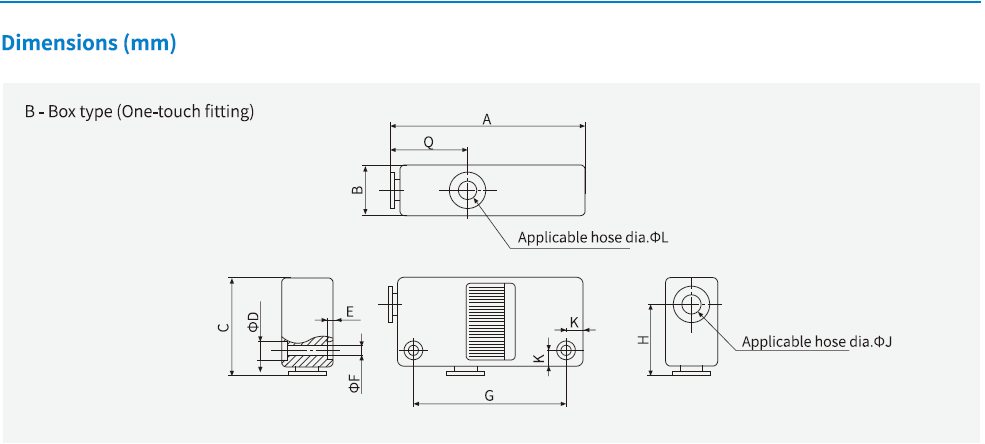

Model/SizeABCDEFGHQLKJ
AZH05B-A60.0 16315.823.2472224656
AZH07B-A60.0 16315.823.2472224656
AZH10B-A6318325.823.2502326656
AZH13B-A782338.57.534.26127.5281078

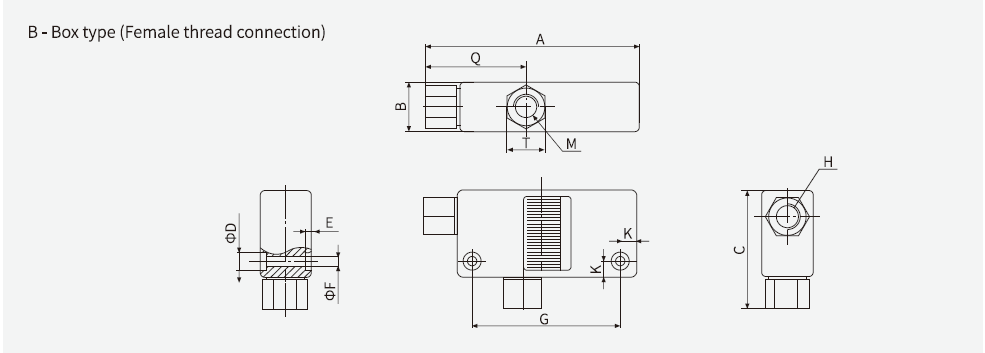

Model/SizeABCDEFGHQMKJ
AZH05B-T68.0 16395.823.247Rc1/831.5Rc1/8512
AZH07B-T68.0 16395.823.247Rc1/831.5Rc1/8512
AZH10B-T7118405.823.250Rc1/833.5Rc1/8512
AZH13B-T86.523507.534.261Rc1/836.5Rc1/474

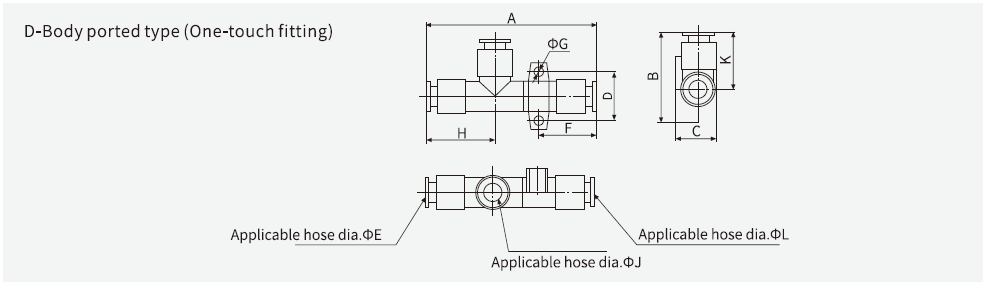

Model/SizeABCDEFGHLKJ
AZH05D-A58.5 3414.2176213.2246226
AZH07D-A61.0 3414.2176223.2246226
AZH10DH-A663717.220624.54.2268236
AZH10DL-A703717.220624.54.2268236
AZH13DH-A7442.520228274.2281027.510
AZH13DL-A79.542.520228274.2281027.510
AZH15D-A93.34722.5271032.84.231.51229.512
AZH18D-A11441211012503.535.51230.512
AZH20D-A124.64627121254.33.538.51632.716

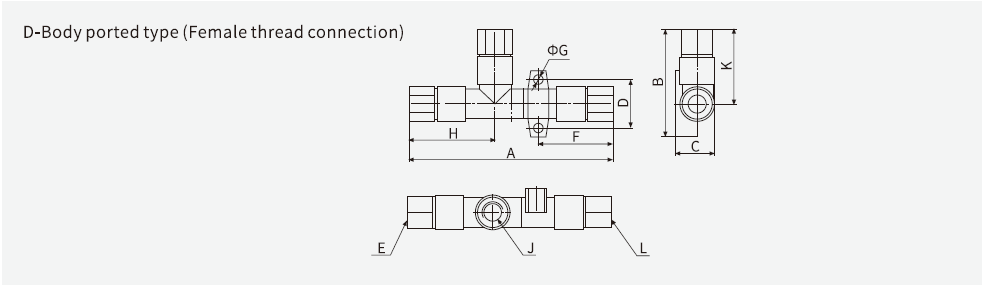

Model/SizeABCDEFGHLKJ
AZH05D-T73.5 41.514.217Rc1/828.53.231.5Rc1/829.5Rc1/8
AZH07D-T76.0 41.514.217Rc1/829.53.231.5Rc1/829.5Rc1/8
AZH10DH-T8244.517.220Rc1/8334.233.5Rc1/830.5Rc1/8
AZH10DL-T8644.517.220Rc1/8334.233.5Rc1/830.5Rc1/8
AZH13DH-T94.5542022Rc1/838.54.236.5Rc1/439Rc1/4
AZH13DL-T99.5542022Rc1/838.54.236.5Rc1/439Rc1/4
AZH15D-T116.558.522.527Rc1/444.54.243Rc3/841Rc3/8
AZH18D-T13352.52110Rc3/857.53.547Rc3/842Rc3/8
AZH20D-T151612712Rc3/869.33.550Rc1/247.7Rc1/2
